La description

• The verifications are available either together with or separately from DC-Footing
• Activation of the earth pressure by torsion of the footing
• Restraint of the footing through active and passive earth pressure

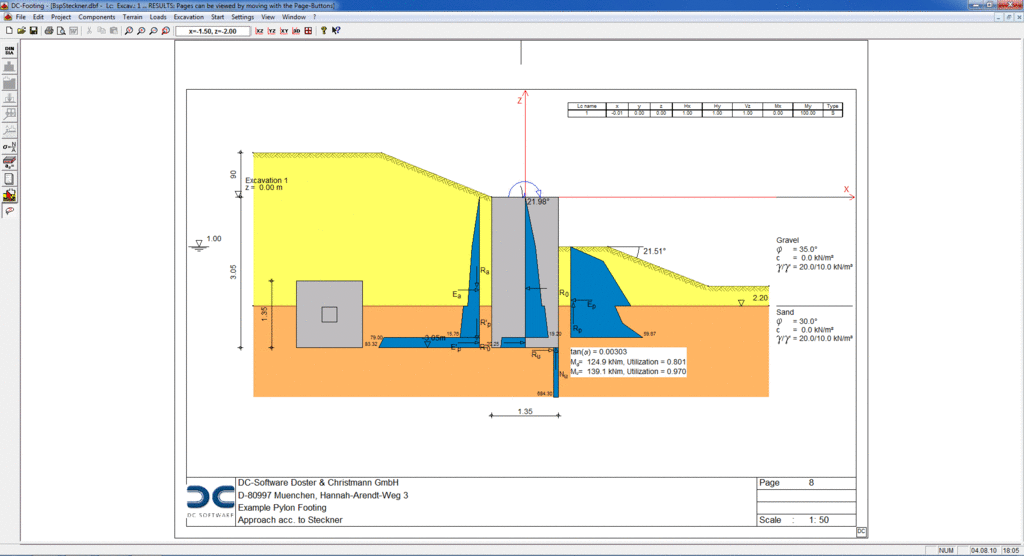

• Restrained block and pylon footings according to the method of Sebastian Steckner (Bautechnik (1989) Booklet 66) with improvement for stratified soil and berms
• Stability analysis via the limit moment
• Serviceability analysis via inclination
• Specification of the utilisation
• Several load cases with vertical concentrated and line loads, horizontal loads in the x- and y-directions and concentrated moments about the x- and y-axes, consideration of the earth pressure and earthquake loads
• Automatic generation of the load case combinations with the combination coefficients psi

Reinforced concrete standards

• EN 1992
• DIN EN 1992
• ÖNORM B 1992
• NF EN 1992
• BS EN 1992
• UNI EN 1992
• SIA 262
• ÖNORM B 4700
• BS 8110
